How to Use Large Warehouse Fans for Better Airflow and Comfort

If you manage a warehouse in the United States, you already feel the pressure: labor markets are tight, utility rates keep climbing, and summer heat is stretching further into spring and fall. The fastest comfort win we see, project after project, is smarter air movement. Large warehouse fans do not replace good insulation or an efficient HVAC system, but they dramatically improve perceived comfort, reduce hot and cold spots, and help your mechanical systems work less. The result is higher productivity, fewer heat complaints, and lower energy spend.

From our experience outfitting facilities from Phoenix, AZ to Allentown, PA, the right fan strategy pays back quickly when it is sized and placed correctly, integrated with controls, and maintained on a simple schedule. This guide covers exactly that.

What types of fans do warehouses use?

Warehouses rarely rely on one fan type. The best outcomes combine several categories that solve different airflow problems.

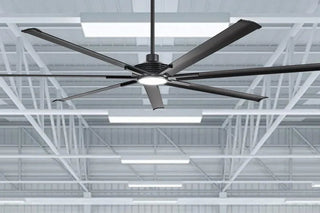

1) HVLS ceiling fans

• HVLS stands for High Volume, Low Speed.

• Typical diameter: 8 to 24 ft.

• Use case: whole building air mixing and destratification, broad comfort coverage.

• Strengths: enormous coverage per fan, quiet, low RPM, low operating cost.

• Weak spot: they do not create a strong breeze at long distances when mounted too high without proper sizing.

2) High speed ceiling or column fans

• Typical diameter: 56 to 96 in, or large axial units on columns.

• Use case: focused air velocity on specific zones like packing lines, pick modules, and workstations.

• Strengths: targeted cooling sensation, easy to relocate or add.

• Weak spot: can be noisy in tight spaces if poorly selected.

3) Wall mounted circulation fans

• Sizes: 18 to 36 in, oscillating or fixed.

• Use case: perimeter mixing, aisles, dock doors, staging areas.

• Strengths: quick install, low cost per unit.

• Weak spot: many small fans can clutter power and maintenance if they are not standardized.

4) Portable drum or barrel fans

• Sizes: 24 to 60 in.

• Use case: temporary hot spots, flexible deployment for projects or seasonal demand.

• Strengths: plug and play, roll where needed.

• Weak spot: floor space, cords, and safety clearances need management.

5) Roof or wall exhaust and supply fans

• Use case: ventilation to remove heat, fumes, or humidity; add outside air when needed.

• Strengths: essential when processes introduce heat or airborne contaminants.

• Weak spot: random exhaust without intake planning can depressurize the building and pull in unfiltered air.

6) Inline and ducted fans for mezzanines and pick modules

• Use case: move air across multi-level structures where stagnation is common.

• Strengths: targeted airflow across dense racks and conveyors.

• Weak spot: design requires more planning and balancing.

Quick selection snapshot

Note: coverage varies with ceiling height, obstructions, and desired airspeed target at floor level.

What is a large air fan and how does it work?

When customers say large fans, they usually mean HVLS fans or very large axial fans. The big physics idea is simple: move a massive volume of air slowly, and let that moving air pick up heat, break up temperature layers, and increase evaporation on skin. That increases thermal comfort even when the air temperature itself does not drop.

The working principles

1. High volume, low speed

• A 20 ft HVLS fan turning 40 to 70 RPM can move 150,000 to 300,000 CFM depending on the model.

• The large diameter creates a column of air that spreads outward along the floor and then rises back up the walls, forming a slow-moving, building-sized circulation cell.

2. Destratification

• In tall buildings, warm air rises and forms a hot layer under the roof while the floor stays cooler in winter. HVLS fans gently push that warm air down, reducing the temperature gap between floor and ceiling.

• That lets your heaters run less and reduces complaints about cold feet and hot heads in mezzanines.

3. Perceived cooling in summer

• Moving air across skin accelerates sweat evaporation. With the right airspeed (typically 100 to 300 fpm at worker height for general comfort), people feel cooler by 5 to 10 F equivalent.

• This is why a 85 F warehouse can feel like 77 to 80 F when air is moving.

4. Efficiency at scale

• Big blades at low RPM use surprisingly little power for the coverage area. A properly selected 20 ft HVLS fan often draws 1 to 2 kW at operating speeds.

What about blade design and motors?

• Direct drive motors are common in newer HVLS fans. They are quiet and require less maintenance than gearboxes.

• Airfoil blade shapes with winglets improve throw and reduce tip vortices, which means more useful airflow at worker height for the same wattage.

• Edge sensors and hub safety cables are standard on reputable brands; ask for them.

Where should large fans go in a warehouse?

Correct placement is the number one success factor. We design layouts by ceiling height, open areas, racking plan, and the locations where people actually work.

Step-by-step placement logic

1. Map open zones

• HVLS fans need clear space below. We target at least 2 ft from blade tip to any obstruction and 10 to 12 ft minimum from the floor to blade.

• For 30 to 50 ft clear heights, we usually mount at 25 to 35 ft.

2. Respect the cone of air

• Each HVLS fan creates a vertical cone. Center the fan so that the outward floor throw reaches the occupied zone rather than a wall or dead corner.

• In big rectangles, start with a grid. Spacing centers for 20 ft fans are often 4 to 6 times the diameter in open spaces. Example: 80 to 120 ft between 20 ft fans.

3. Work with racks, not against them

• Racks channel airflow. In wide-aisle layouts, align the fan so the floor-level outflow runs parallel to main travel aisles.

• In narrow-aisle or very tall racking, supplement with column or wall fans to push air down long aisles.

4. Keep fans away from dock doors if they fight infiltration

• At docks, cross breezes can pull unconditioned air in. We aim HVLS airflow to sweep the staging zone but not blow out of open doors.

5. Think in zones

• Break the building into comfort zones: packing, pick modules, dock, bulk storage, returns. Give each zone its own control group so you can fine tune speed by time of day and season.

Example placement grid

Numbers above are planning starts, not final engineering.

How to use large fans to cool a warehouse

Cooling has two halves: comfort cooling by air movement and load reduction by better mixing and ventilation.

Target airspeeds for comfort

We design to deliver 100 to 300 feet per minute (fpm) at worker height in most open warehouse zones. On packing lines or higher-exertion areas, 200 to 400 fpm feels better in summer. Near paperwork and labeling stations, keep closer to 100 to 150 fpm to avoid paper flutter.

Seasonal operating playbook

• Spring to fall in Phoenix, AZ

  • Daytime: run HVLS at 60 to 80 percent, add column fans to 70 percent at lines.

  • Night flush: if outdoor air drops below indoor, use exhaust and intake to purge stored heat, then resume HVLS in the morning.

• Summer in Dallas, TX

  • Afternoon: ramp HVLS to 80 to 100 percent during peak hours, then step down after sunset.

  • Coordinate with rooftop units: raise thermostat setpoints by 2 to 4 F because airflow improves comfort.

• Humid summer in Jacksonville, FL

  • Keep airflow continuous to reduce humidity feel at skin level.

  • Do not overdo exhaust on humid afternoons unless you have matched makeup air; otherwise, you draw in damp air.

• Shoulder seasons in Columbus, OH

  • Use low-speed destratification in the morning to even out temperatures.

  • Bump speed slightly during pick waves to offset activity heat.

Setpoint strategy with HVAC

Because moving air improves comfort, you can often raise cooling setpoints by 2 to 4 F and lower heating setpoints by 2 to 3 F without reducing comfort. Always test in small steps and survey your crews.

Example: simple comfort gain calculation

If a 150,000 sq ft warehouse in Nashville, TN runs four 20 ft HVLS fans at an average of 1.2 kW each for 12 hours per day, summer weekdays:

• Daily fan energy: 1.2 kW x 4 fans x 12 h = 57.6 kWh

• If airflow allows you to raise AC setpoints to cut RTU runtime by 60 kWh per day, your net daily savings is roughly 2.4 kWh plus a comfort gain that likely reduces heat complaints. In many projects, the HVAC runtime reduction is considerably larger.

Common large fan problems and how to fix them

We see the same issues in site visits. None of them are hard to solve.

1) Workers do not feel airflow

• Cause: fan mounted too high for its diameter, or speed too low for the task.

• Fix: increase speed; if already high, consider larger diameter or add a column fan to push air into the zone.

2) Paperwork blowing off tables

• Cause: local airspeed too high near desks or labeling stations.

• Fix: reduce speed during those shifts, re-aim column fans, or move the HVLS center line 5 to 10 ft.

3) Big temperature differences between floor and mezzanine

• Cause: stratification from heaters or process heat.

• Fix: run HVLS at low speed continuously in winter to stir layers; add a small destrat fan underneath the mezz deck if needed.

4) Dock doors pulling in dust or humidity

• Cause: unbalanced exhaust and intake, plus HVLS pushing air toward open doors.

• Fix: balance with dedicated makeup air; re-aim floor outflow to sweep staging, not the door line.

5) Vibration or noise

• Cause: mounting structure flex, blade contamination, or poor installation.

• Fix: verify structure per manufacturer, clean blades, confirm fastener torque, and check safety cable and hub hardware.

6) Tripping breakers

• Cause: incorrect circuit sizing, long wire runs with voltage drop.

• Fix: confirm amperage and wire gauge; dedicate circuits to large fans.

How to increase airflow from large fans

When airflow feels short, try these in order of cost.

1. Adjust the operating profile

• Many facilities run fans too slowly by habit. For summer comfort, do not be shy about 70 to 100 percent on HVLS during hot hours.

2. Improve placement and aim

• For column fans, increase tilt or rotate to push along the work area.

• For HVLS, small relocations of 5 to 15 ft can make a noticeable difference when a fan sits too close to a beam line or under a ridge vent.

3. Reduce obstructions

• Tall pallet stacks or temporary staging walls choke airflow. Reorganize high stacks away from major air paths.

4. Upsize diameter or add a second fan

• If clear height is 36 ft or higher, moving from 16 ft to 20 ft diameter often yields a visible increase at floor level.

• In long rectangles, adding one more HVLS in the middle can fix the last dead zone.

5. Add mixing fans in aisles

• A pair of 24 to 36 in wall fans pointed down each long aisle can spread the HVLS floor outflow deeper into racking.

How to get the most from a big fan for air circulation

Think of your fan system as a team, not a single star player.

Controls: manual is good, smart is better

• Minimum viable control: a simple keypad at each zone.

• Better: networked controllers that schedule speeds by time of day and season.

• Best: sensors for temperature and humidity that auto-adjust speed, with integration to your building automation system.

Pairing with ventilation

• In summer evenings when outside air is cooler, use exhaust plus intake to purge heat, then use HVLS to distribute that cool air.

• During humid afternoons, avoid overventilating unless you bring in filtered and conditioned makeup air.

Rethink setpoints and work practices

• Raise cooling setpoints 2 to 4 F with airflow.

• Organize break areas and hydration stations where airflow is strongest during peak heat.

• In winter, run HVLS on low to reclaim heat at the roof and reduce heater cycles.

Maintenance that actually matters

Consistent, light-touch maintenance beats emergency fixes every time.

Does a bigger fan always move more air?

Short answer: bigger helps, but bigger alone is not the whole story.

• Diameter increases the effective coverage and the ability to throw air to the floor.

• Motor power, blade count, and airfoil design determine how much of that diameter becomes useful floor-level airspeed.

• Mounting height matters: a 24 ft fan at 55 ft in a cluttered rack field may deliver less floor airspeed than a 20 ft unit at 35 ft in an open zone.

• Too many small fans can waste energy if they fight each other; too few big fans can leave dead zones. The sweet spot mixes sizes.

Practical comparison

Conclusion: Fan B is larger and slightly higher power, but the real advantage is its ability to maintain target airspeed farther from center.

Sizing worksheet you can use today

Use this quick worksheet to pick a starting HVLS size and quantity. Then refine with a retailer or engineer.

1. Measure clear height: floor to lowest obstruction.

2. Decide the primary goal: summer comfort, winter destratification, or both.

3. Select a diameter:

   • 12 to 16 ft for 24 to 30 ft heights

   • 18 to 20 ft for 30 to 45 ft heights

   • 22 to 24 ft for more than 45 ft heights

4. Start with a spacing multiple: 4.5x diameter in open areas.

5. Sketch the grid to avoid beams, lights, or sprinklers.

6. Add aisle fans if racking occupies more than 40 percent of floor area.

7. Plan controls: at least one control zone per 2 to 4 HVLS fans.

Regional examples across the US

Inland Southwest: Phoenix, AZ

• Summer highs regularly exceed 105 F.

• Strategy: high daytime airspeed, night flush when outdoor air drops under 85 F.

• Typical setup in a 250,000 sq ft DC: 10 to 12 fans at 20 ft plus 12 column fans along lines.

• Expected setpoint relief: 3 to 5 F on cooling.

Gulf Coast: Houston, TX

• Heat plus humidity is the challenge.

• Strategy: continuous airflow at worker height, careful control of outdoor air in the afternoon.

• Typical setup in a 180,000 sq ft building: 8 to 10 fans at 18 to 20 ft, wall fans at docks, and a dedicated makeup air unit to protect indoor RH.

Upper Midwest: Minneapolis, MN

• Long heating season and tall buildings.

• Strategy: winter destratification is the top savings lever; fans run low speed most days November through March.

• Typical setup in a 120,000 sq ft building: 5 to 6 fans at 16 ft with heaters staged back 2 to 3 F.

Mid-Atlantic: Allentown, PA

• Four seasons with heavy fulfillment labor in summer peaks.

• Strategy: flexible zoning, seasonal schedules, and smart setpoints so the same equipment handles July and January well.

Realistic energy and comfort expectations

While every site is different, here are conservative planning ranges we use with customers.

Note: actual energy savings depend on your utility rates, building envelope, and HVAC equipment.

Safety, codes, and coordination

• Sprinklers and fire code: maintain clearances per local code and manufacturer docs. In most cases, HVLS fan hubs must be at least 3 ft below sprinkler deflectors and offset from heads.

• Seismic and structure: verify purlin or bar joist capacity and use certified mounts.

• Controls during fire alarm: interlock to stop HVLS fans on alarm, which is standard in newer controllers.

Installation and commissioning checklist

1. Structural review signed off.

2. Fan layout confirmed with electrical paths and controls.

3. Clearances measured to sprinklers, lights, and conveyors.

4. Electrical circuits sized for continuous duty.

5. Blades assembled and torqued to spec.

6. Safety cable and sensors tested.

7. Controls programmed with summer and winter schedules.

8. Walk the floor with crews to confirm comfort and paper behavior at stations.

9. Document the maintenance schedule and owner training.

Frequently asked questions

Q1: Will a large fan actually cool the air?
No. Fans do not reduce dry bulb temperature. They move air to increase evaporation and improve heat transfer at skin level. Many customers raise AC setpoints 2 to 4 F and still feel cooler because of airflow.

Q2: Can I run HVLS fans in winter?
Yes, and you should. Run them at low speed to destratify. That evens out temperatures and reduces heater runtime.

Q3: How many large fans do I need?
As a start, plan one 20 ft HVLS fan per 90 to 110 ft of grid in open areas at 30 to 40 ft heights. Adjust for obstructions and targeted zones. We almost always supplement with smaller fans in aisles and at docks.

Q4: Are bigger fans always better?
Not always. Bigger adds reach, but if the mount point is too high or the zone is chopped up with racks, a slightly smaller fan with better placement and a few column fans can outperform a single oversized unit.

Q5: How loud are HVLS fans?
Modern direct drive HVLS fans are quiet, often in the 45 to 55 dBA range at floor level beneath the fan. Column and wall fans are louder because they run at higher RPM.

Q6: What about power usage?
A 20 ft HVLS fan often draws around 1 to 2 kW at typical operating speeds. Because one fan covers a huge area, the watts per square foot are low compared to many small high-speed units.

Q7: Do large fans cause safety issues with forklifts or paperwork?
With correct placement and speed settings, no. We always walk the floor to verify paper stability at stations and to ensure that air paths do not push debris into lift traffic lanes.

Q8: What if our facility has dust or fibers in the air?
Choose blades with easy-clean finishes and plan quarterly cleanings. Dust adds weight and can unbalance blades over time.

Summary

Large warehouse fans are one of the most cost-effective upgrades for comfort and productivity. When we combine the right diameters, smart placement, and simple controls, you get even temperatures, fewer hot spots, and happier teams. Whether you run a 60,000 sq ft regional hub or a 500,000 sq ft national DC, you can start with the steps in this guide, then ask a professional to refine the layout and controls for your exact building and climate.
