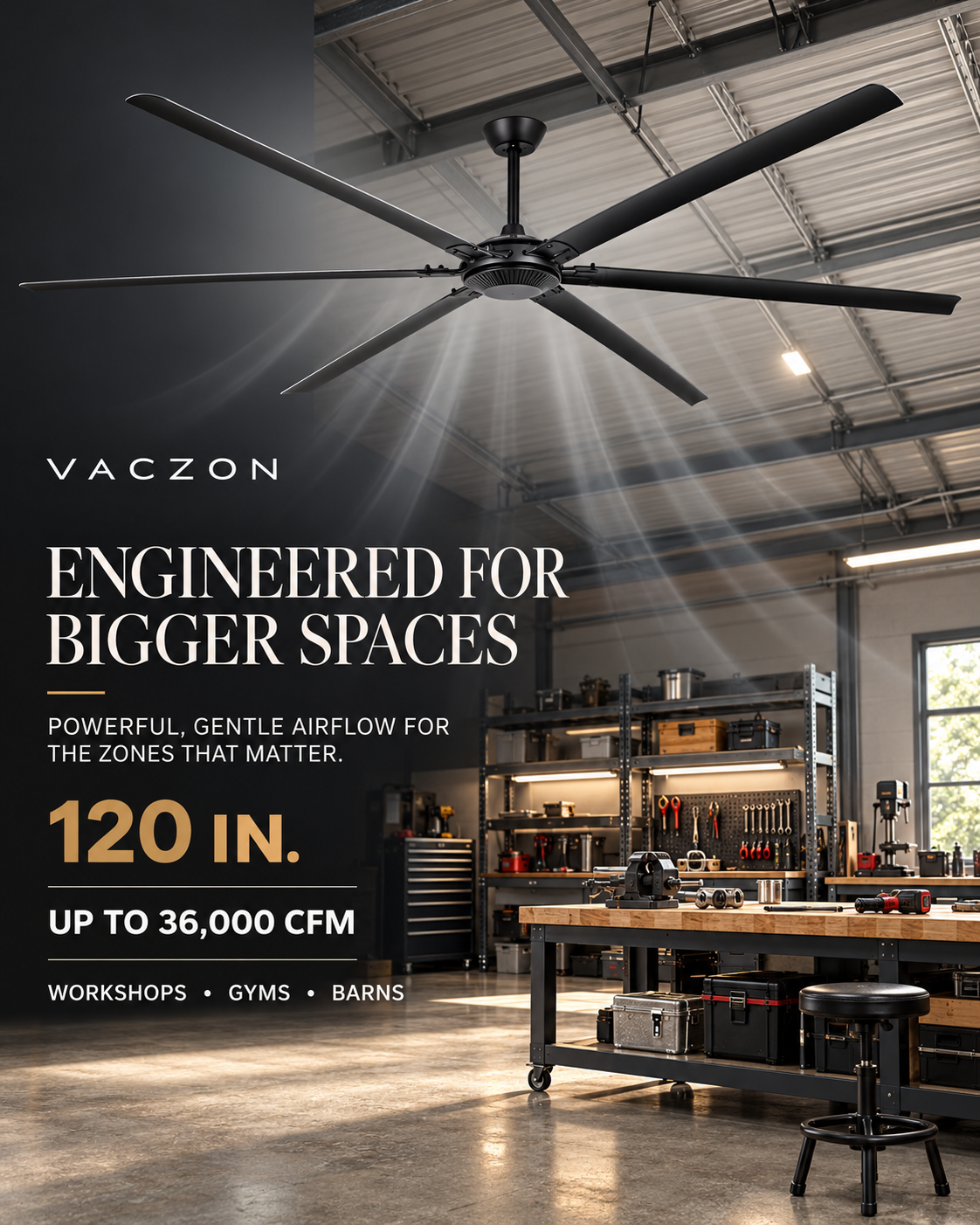

Command airflow in large spaces with this 120" industrial HVLS ceiling fan. Built tough with lightweight, corrosion-resistant aluminum for long life in demanding environments, this massive fan features 6 engineered blades powered by a high-efficiency 80W DC motor. Delivering a powerful 36,000 CFM at an energy-efficient 692 CFM/W, its large-diameter, low-RPM design provides quiet (38 dB), draft-free comfort for great rooms, warehouses, factories, workshops, gyms, barns, and event halls. Complete with a 6-speed remote control and ETL certification, it offers exceptional performance backed by a 5-year motor warranty.
Details Fan Blade Span 120 Inch Recommended Room Size Great Room (more than 350 sq ft) Style Industrial / HVLS Finish Family Black Product Material Aluminum Mounting Type Downrod Mount Light Kit Included No Light Location Rating Dry Location Application Warehouses, Factories, Gymnasium, Workshops, Barns Blades Number of Blades 6 Blade Material Aluminum Blade Color Matte Black Blade Pitch 12° Blade Dimensions 53.2"*3.9" (1351*99 mm) Motor & Performance Motor Type DC Motor Motor Power 80W High Speed Power 52W Speed Settings 6 Speeds Max. Airflow (CFM) 36,000 CFM Energy Efficiency 692 CFM/W Max Speed (RPM) 70 RPM Noise Level 38 dB Reversible Motor Yes Control & Features Control Type Remote Control Controller Model GA030-F8004 Remote Battery Type CR2032 Timer Function Yes Memory Function Yes Warranty & Certifications Certifications ETL Listed Motor Warranty 5-Year Warranty Controller Warranty 2-Year Warranty Dimensions & Weight Overall Dimensions 120"*120"*17.39" (3048*3048*442 mm) Canopy Size φ5.91" (Ø150 mm) Wire Length 11.81" Extension Wire 1*18" & 2*24" Product Weight 14 kg (30.8 lbs) - 1 x HVLS Industrial Ceiling Fan
- 1 x Remote Control Set
- 1 x User Manual
- 1 x Downrod (10")
Command airflow in large spaces with this 120" industrial HVLS ceiling fan. Built tough with lightweight, corrosion-resistant aluminum for long life in demanding environments, this massive fan features 6 engineered blades powered by a high-efficiency 80W DC motor. Delivering a powerful 36,000 CFM at an energy-efficient 692 CFM/W, its large-diameter, low-RPM design provides quiet (38 dB), draft-free comfort for great rooms, warehouses, factories, workshops, gyms, barns, and event halls. Complete with a 6-speed remote control and ETL certification, it offers exceptional performance backed by a 5-year motor warranty.
| Details | |
|---|---|
| Fan Blade Span | 120 Inch |
| Recommended Room Size | Great Room (more than 350 sq ft) |
| Style | Industrial / HVLS |
| Finish Family | Black |
| Product Material | Aluminum |
| Mounting Type | Downrod Mount |
| Light Kit Included | No Light |
| Location Rating | Dry Location |
| Application | Warehouses, Factories, Gymnasium, Workshops, Barns |
| Blades | |
| Number of Blades | 6 |
| Blade Material | Aluminum |
| Blade Color | Matte Black |
| Blade Pitch | 12° |
| Blade Dimensions | 53.2"*3.9" (1351*99 mm) |
| Motor & Performance | |
| Motor Type | DC Motor |
| Motor Power | 80W |
| High Speed Power | 52W |
| Speed Settings | 6 Speeds |
| Max. Airflow (CFM) | 36,000 CFM |
| Energy Efficiency | 692 CFM/W |
| Max Speed (RPM) | 70 RPM |
| Noise Level | 38 dB |
| Reversible Motor | Yes |
| Control & Features | |
| Control Type | Remote Control |
| Controller Model | GA030-F8004 |
| Remote Battery Type | CR2032 |
| Timer Function | Yes |
| Memory Function | Yes |
| Warranty & Certifications | |
| Certifications | ETL Listed |
| Motor Warranty | 5-Year Warranty |
| Controller Warranty | 2-Year Warranty |
| Dimensions & Weight | |
| Overall Dimensions | 120"*120"*17.39" (3048*3048*442 mm) |
| Canopy Size | φ5.91" (Ø150 mm) |
| Wire Length | 11.81" |
| Extension Wire | 1*18" & 2*24" |
| Product Weight | 14 kg (30.8 lbs) |
- 1 x HVLS Industrial Ceiling Fan
- 1 x Remote Control Set
- 1 x User Manual
- 1 x Downrod (10")
VACZON PERFORMANCE
COMFORT, MADE FOR YOUR SPACE.
Discover ceiling fans designed to complement how you live, work, and relax.
- Thoughtful Design
- Everyday Comfort
- Made to Fit Your Space
Real Homes. Real Comfort.
Questions & Answers
We have suggested questions and answers for you that may be of interest to you.
Is this 120-inch HVLS fan right for my space?
This 120-inch HVLS fan is designed for large indoor spaces, including warehouses, workshops, gyms, barns, factories, event halls, and expansive great rooms. It delivers up to 36,000 CFM for broad, low-speed air circulation. For the best result, choose the number and placement of fans based on ceiling height, room layout, racks, machinery, doors, and existing airflow—not floor area alone
What ceiling height and clearance does this fan need?

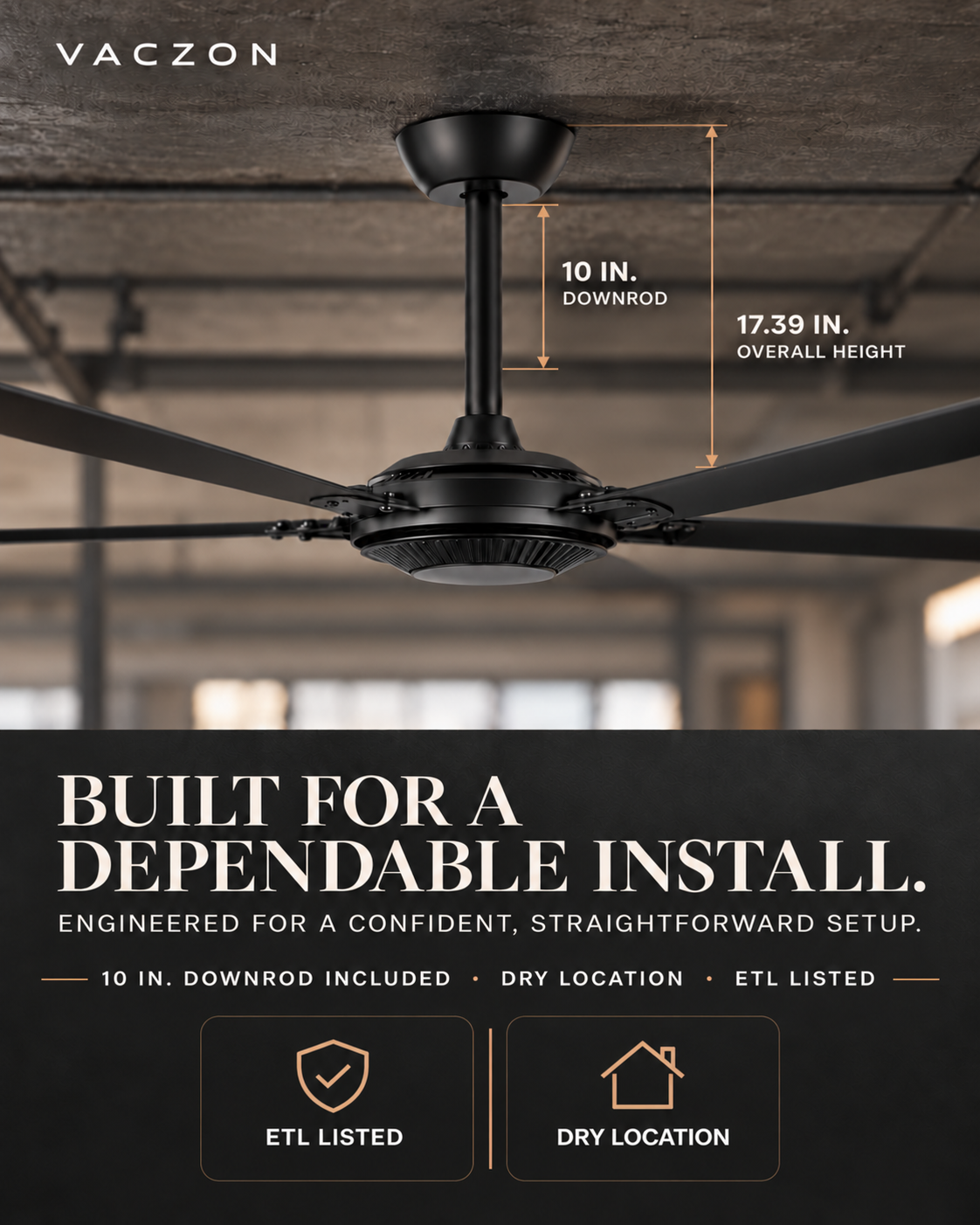

This downrod-mount fan measures 17.39 inches from the ceiling to its lowest point and includes a 10-inch downrod. For safe operation, maintain at least 7 ft. of clearance between the blades and the floor, plus ample open clearance around the full 120-inch blade span. Because of its size, we recommend reviewing the installation site with a qualified installer before ordering.

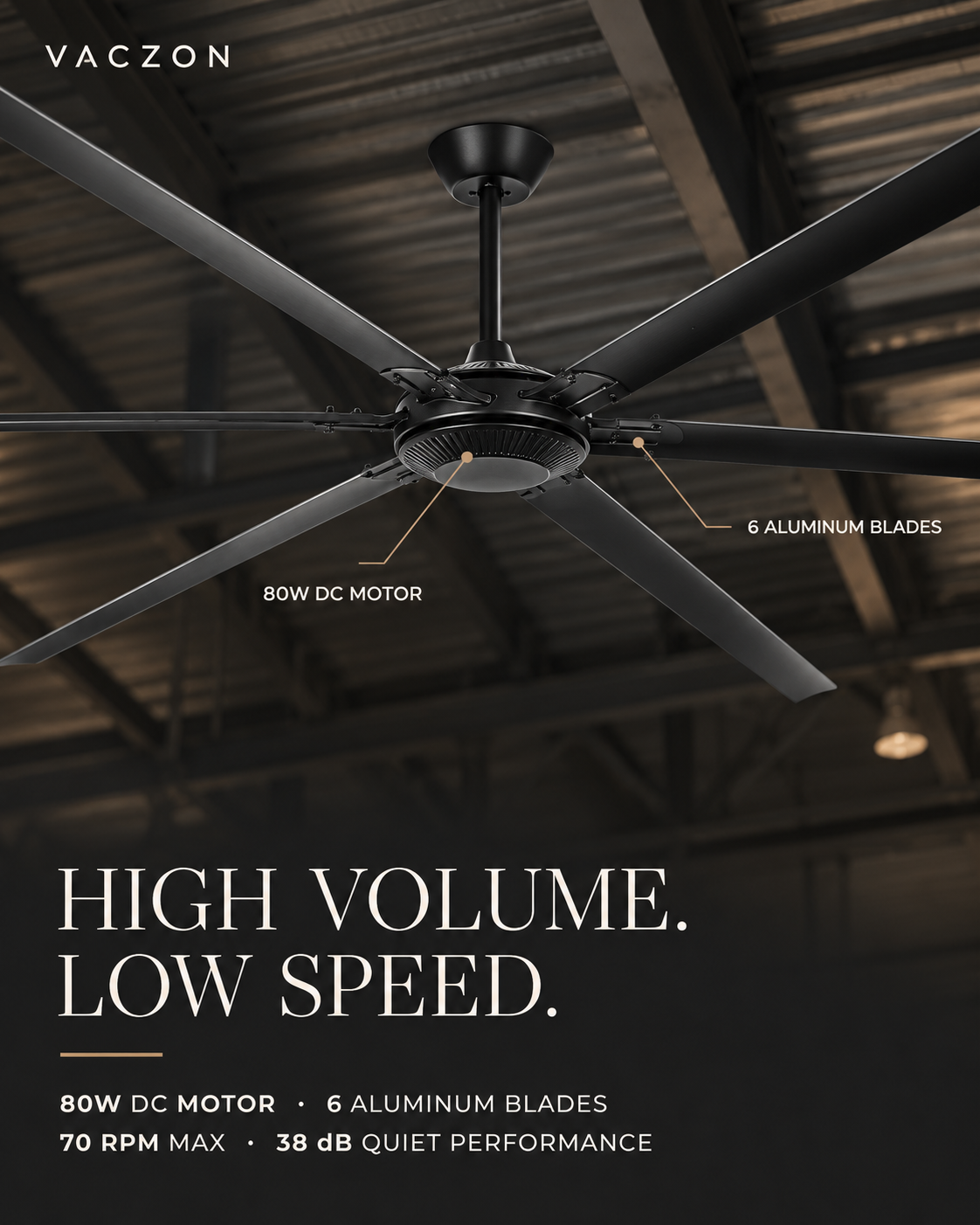

Why does a 120-inch HVLS fan rotate at only 70 RPM?
HVLS means High Volume, Low Speed. Instead of creating a narrow, high-speed draft, the large 120-inch blade span moves a very high volume of air across a wide area at a lower RPM. At up to 70 RPM, this fan delivers up to 36,000 CFM while operating at approximately 38 dB, helping create smoother and more comfortable circulation in large spaces.
Can this fan be installed outdoors or on a covered patio?
No. This model is rated for dry indoor locations only. Do not install it outdoors, on uncovered patios, in bathrooms, or in areas exposed to rain, high humidity, direct moisture, or wind-driven water. A covered roof alone does not make an indoor-rated fan suitable for outdoor conditions.

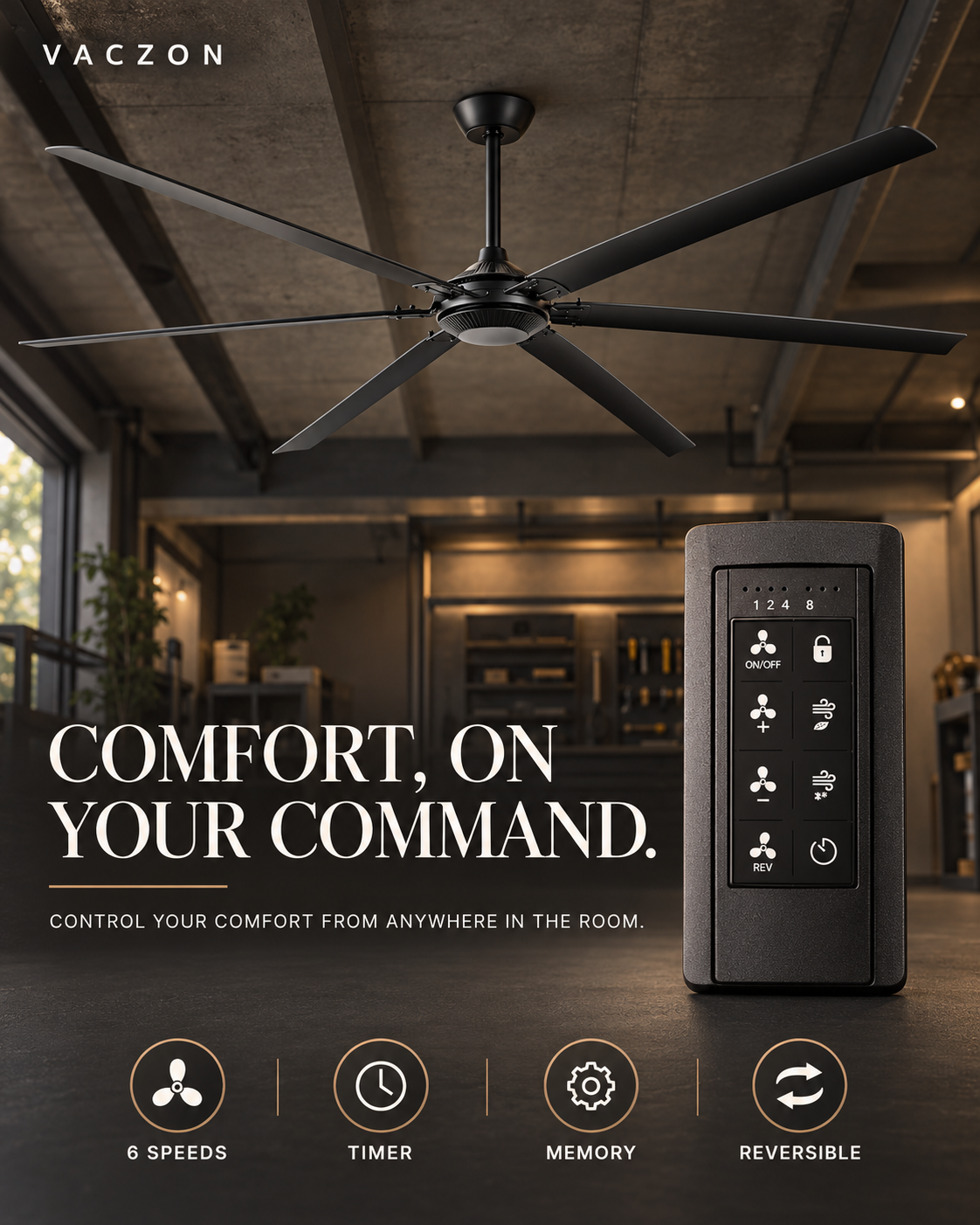

Can I control the speed, timer, and airflow direction with the remote?
Yes. The included remote controls the fan’s 6 speeds, timer, and memory function. It uses a CR2032 battery. The DC motor is also reversible. Use the standard direction for cooling airflow in warmer months, then reverse it in cooler months to help circulate warm air near the ceiling.
